Catamaran
Sailboat Trailer
Trailers for Hobie Wave, Aqua Cat
12.5 & 14, Nacra Playcat,
Seacycle & Waterbike and similar small Catamarans
 |
Trailex Ultra-Light Aluminum Trailers
come with a One Year Limited Warranty. Almost 50% lighter
than steel trailers and they Never Rust |
|
FREE SHIPPING
ON TRAILEX SUT SERIES TRAILERS*
*within the 48 USA |
Trailex Model
SUT-450-C Trailer
New SUT-450-C Model
Ships Via UPS
Typical Trailex Catamaran Trailer
Trailex Model SUT-450-C Ships via UPS
Model SUT-450-C carries a single Catamaran Sailboat
Mast & Spars are carried alongside and under hull on padded area, not above hull ,
unless you add front & rear mast stand options.
All Aluminum, All Bolted Construction, All
Adjustable
Model SUT-450-C have epoxy coated leaf springs,
giving them a carrying capacity of up to 450 lbs.
Since SUT-450-C Trailers are made of aluminum, they
are
maintenance-free in addition to being strong and lightweight. This
trailer can be shipped via UPS, and is easily assembled using only simple tools.
|
SUT-450-C Specifications |
Standard Equipment |
|
Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical: |
450 lbs
180 lbs
12'--7"
75"
4:80
X 8" ( 16" High)
1-7/8"
Flat 4 prong
|
-
Submersible Taillights
-
Safety Chain
-
6 Web Strap clips
-
4 Point Roller Supports
-
High Impact Plastic Fenders
-
High Speed Demountable Wheels & Tires
-
Adjustable Undercarriage
-
Epoxy Coated Springs
-
Padded Area for Mast & Spars
|
|
SUT-450-C
|
1,321.00
|
+ FREE
SHIPPING
in 48 USA
|
|
SUT-350-EP Specifications
Nacra Playcat only |
Standard Equipment |
|
Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical: |
350 lbs
190 lbs
14'-3"
84"
4:80
X 8" ( 16" High)
1-7/8"
Flat 4 prong
|
-
Submersible Taillights
-
Safety Chain
-
6 Web Strap clips
-
Rear Roller Supports
-
Front Pad Supports
-
High Impact Plastic Fenders
-
High Speed Demountable Wheels & Tires
-
Adjustable Undercarriage
-
Epoxy Coated Springs
-
Padded Area for Mast & Spars
|

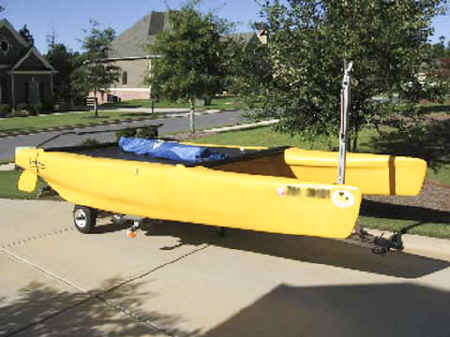

Escape Playcat (Now the Nacra Playcat) on the SUT-350-EP Trailer
The Nacra Playcat Specifications are Identical to the Escape
Playcat
Shown with Optional 48" Front Mast Stand
Nacra
Playcat* Model (SUT-350-EP)
|
SUT-350-EP*
|
1199.00*
|
+ FREE
SHIPPING
in 48 USA
|
* The SUT-350-EP will only Fit the Nacra Playcat
(formerly the Escape Playcat)
Limited Quantities available at this special low price. Availability
subject to prior sale.
Standard List Price for the SUT-350-EP is $ 1499.00
|
|
ORDER THE COMBO PACKAGE
|
Buy Two
items, and get One FREE
Save $ 50.00 |
(Order the Spare Tire Carrier and Bearing
Buddies with Bra and Receive the Spare Tire for FREE, a 50.00
Value)
Ask for the Combo Package and you will receive:
Spare Tire
Spare Tire Carrier
Bearing Buddies with Bras
What is a Bearing Buddy? View
Here
COMBO Package $89.90
(only when ordered with trailer)
RETAIL VALUE OF PACKAGE IS
$139.90
|
 |
|
 |
| Front View Showing Optional Mast Stand |
|
Rear View Showing Optional Mast Stand |
Application Information
Model SUT-350-EP will carry a single Nacra PlayCat
or Escape Play Cat Catamaran
Model SUT-450-C will carry a single Catamaran
Sailboat such as:
* Riser Option Required
-Small
Catamarans -
Such as the Hobie 12 and the Hobie Bravo will
fit on Our Model
SUT-450-I Trailer CLICK HERE
Model SUT-450-C will also fit other catamarans
up to a maximum 69" from center of one hull to another.
Example: boat is 72" wide total with 18" wide hull - subtract
the width of one hull to determine centerline = 54" which is well
under the 69" maximum centerline allowed.
Other Models available for larger Catamarans such as Hobie
Cat 14,16,18,20, Dart, Nacra, Prindle and similar Catamaran sailboats. CLICK
HERE FOR DETAILS
 |
Typical Trailex Trailer Packaged for UPS Shipment |
|
-
Patented T-Bolt Construction
-
Fully Adjustable
-
Heads of bolts slide to any position.
-
Requires only one wrench to tighten
-
Lock nuts on all bolts
-
Strong & lightweight
|
 |
Click
Here for Frequently Asked Questions
|
