Medium
Sailboat Trailer
For Vanguard 15
Sailboat , International Club 420 Sailboat and Similar Style Sailboats
|
 |
Trailex Ultra-Light Aluminum Trailers
come with a One Year Limited Warranty. Almost 50% lighter
than steel trailers and they Never Rust |
|
FREE SHIPPING
ON TRAILEX SUT SERIES TRAILERS*
*within the 48 USA |
Trailex Model
SUT-500-S Trailer
Wide 6" bunks provide maximum hull support
The SUT-500-S Trailer will fit Sailboats up to
500 lbs
All Aluminum, All Bolted Construction, All
Adjustable
Model SUT-500 has epoxy coated leaf springs,
giving it a carrying capacity of up to 500 lbs. This
trailer can be shipped via UPS, and is easily assembled using only simple tools. Since the
SUT-500 Trailer is made of aluminum, it is
maintenance-free in addition to being strong and lightweight.
Trailex SUT-500-S Trailer with Jet Sailboat with optional Winch
and Front Mast Stand

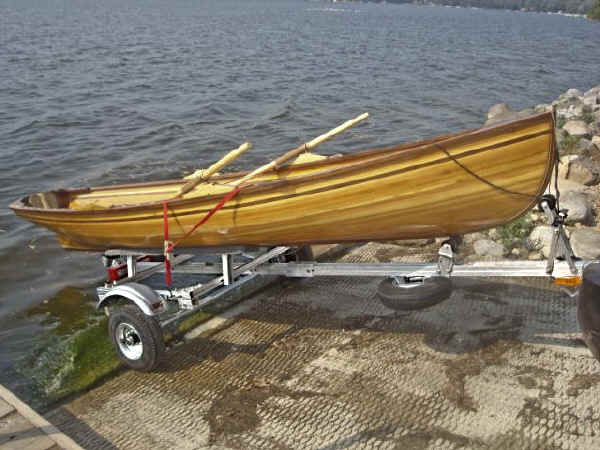

Trailex SUT-500-S Trailer Fits A Wide Variety of Sailboats and Sailing Dories
(shown with optional spare tire and spare tire carrier)
 |
|
 |
|
Optional FCA-1 Custom Front Cradle Assembly Provides
Additional Bow Support Adjustment
NOTE: Special Use Only-Not Required for Most Boats
|
|
Cradles Adjust To Fit Many Special Boats Such
As the
Force 5, MXRay and Others
|
The Trailex SUT-500-S Trailer Is Fully Adjustable For All Types Of Sailboats
This Photo Shows The Bunks Adjusted To The Far Rear Of The Trailer
The Trailex SUT-500-S Trailer Is A Perfect Fit For Medium Sailboats and
Dories
This Photo Shows The Bunks Adjusted For Center Hull Support
|
SUT-500-S
|
1,199.00
|
+ FREE
SHIPPING
in 48 USA
|
| SUT-500-S18 |
1,449.00
|
+ FREE
SHIPPING
in 48 USA
|
|
|
ORDER THE COMBO PACKAGE
|
Buy Two
items, and get One FREE
Save $ 50.00 |
(Order the Spare Tire Carrier
and Bearing Buddies with Bra and Receive the Spare Tire for FREE,
a 50.00 Value)
Ask for the Combo Package and you will receive:
Spare Tire
Spare Tire Carrier
Bearing Buddies with Bras
What is a Bearing Buddy? View
Here
COMBO Package $89.90
(only when ordered with trailer)
RETAIL VALUE OF PACKAGE IS
$139.90 |
|
SUT-500-S
Specifications |
Standard
Equipment |
|
Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical: |
500 lbs
130 lbs
15'-4"
72"
16" High
1-7/8"
Flat 4 prong
|
-
Submersible Taillights
-
Safety Chain
-
48" Padded Bunks
-
Adjustable Bow Stop
-
Lift Handle with Vinyl Caps
-
High Impact Plastic Fenders
-
High Speed Demountable Galvanized Wheels &
Tires
-
Adjustable Undercarriage
-
Three - 6" Rollers
-
Epoxy Coated Springs
|
|
SUT-500-S18
Specifications |
Standard
Equipment |
|
Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical: |
500 lbs
150 lbs
118'-3"
72"
16" High
1-7/8"
Flat 4 prong
|
-
Submersible Taillights
-
Safety Chain
-
48" Padded Bunks (2)
-
Front Padded Cradle
-
Adjustable Bow Stop
-
Lift Handle with Vinyl Caps
-
High Impact Plastic Fenders
-
High Speed Demountable Galvanized Wheels &
Tires
-
Adjustable Undercarriage
-
Two - 6" Rollers
-
Epoxy Coated Springs
|
|
SUT-500-S18 Special Features |
The Trailex SUT-500-S18 differs from the SUT-500-S in the following
two Specifications
|
 |
|
 |
|
Trailex SUT-500-S18 is 18'-3" long, for larger
boats up to 21' and 500 lbs
|
|
Trailex SUT-500-S18 Adds a Front Padded Cradle in place
of one of the Front Rollers
|
Application Information
Model SUT-500-S will carry up to an 18' Sailboat
Such as the Vanguard 15 Sailboat, International Club 420 Sailboat,
or similar sailboats up to 500 lbs.
Model SUT-500-S18 will carry up to an 21' long Sailboat
Add optional Front Mast Stand
. Order DMMC4
or AM-16 for rear mast carrier
support depending on type of boat.
Click
Here for Frequently Asked Questions
 |
Typical Trailex Trailer Packaged for UPS Shipment |
|
-
Patented T-Bolt Construction
-
Fully Adjustable
-
Heads of bolts slide to any position.
-
Requires only one wrench to tighten
-
Lock nuts on all bolts
-
Strong & lightweight
|
 |
|
