Multiple Canoe or Kayak Trailers
Trailers for transporting
multiple canoes or kayaks
Designed for large
numbers of canoes or kayaks
Model CLP-16 Canoe Trailer Shown with 16 Canoes
( MichiCraft Canoes not included with trailer)
|
Model CLP-10 Canoe Trailer Shown with 4 Canoes & 2 Swing Bars
for Multiple tubes or Kayaks. Optional Parking Jack shown (canoes
& tubes not included)
|
Model CLP-16K Kayak trailer will carry up to 16 kayaks
(kayaks not included)
| CLP Canoe or Kayak Trailers are made from
welded steel components. A double thick coat of blue paint protects the
steel surfaces. High speed 13" wheels and tires and highway lighting
system are standard. |
|
Models
|
CLP-10
|
CLP-16
|
CLP-16K
|
CLP-32K
|
|
Capacity: |
1000 lbs
10 Canoes
or Multiple Kayaks*
|
1600 lbs
16 Canoes
or Multiple
Kayaks*
|
1000 lbs
16 Kayaks
|
1600 lbs
32 Kayaks
|
|
Weight: |
720 lbs
|
1200 lbs
|
700 lbs
|
1200 lbs
|
|
Length: |
19'
|
30'
|
15'
|
30'
|
|
Width |
95"
|
95"
|
95"
|
95"
|
|
Height |
9'-6"
|
8'-8"
|
7'-3"
|
8'-8"
|
|
Tires: |
13"
|
13"
|
13"
|
13"
|
|
Coupler: |
2"
|
2"
|
2"
|
2"
|
| * Depends on actual kayak dimensions -Add Optional SB
- Swing bars which mount between cross bars to reduce support length between
bars. Each Swing Bar adds 2 levels of center cross bars on one side.
Can mount 2 Swing Bars on CLP-10 and 4 Swing Bars on CLP-16
|
Canoe Trailer Fixed Cross Bars are 110" apart
Swing Bars reduce spacing to 55"
All Bars allow 40" space per side
CLP-16K and CLP -32K Kayak Trailers cross bars are 63" apart
and have 33" vertical bay clearance
PRICES
|
CLP-10
|
2599.00
|
+ shipping & handling
|
|
CLP-16
|
3799.00
|
+ shipping & handling
|
|
CLP-16K
|
2099.00
|
+ shipping & handling
|
|
CLP-32K
|
3799.00
|
+ shipping & handling
|
| Canoe Trailers have Open Space that allows you to Install a Storage
Box. Box Location Does Not Take Any Canoe
Storage Space. You can Obtain Low Cost Boxes locally , such as
a Pickup truck Tool box or larger Marine Dock Boxes --(as

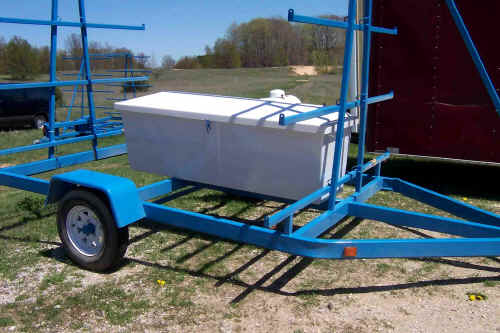

shown in photo). Typical customer installed Storage box is Shown on
a CLP-10 Trailer. NOTE: Swing Bars will not fit When a Large Box is
Installed |
Model CLP-16K Kayak Trailer handles a full load of 16 Kayaks
(kayaks not included)
Model CLP-32K Kayak Trailer -Not shown - has a second set behind the front
carriers
|
Optional Extra Equipment |
|
SB |
Swing Bars - extra support bar *
|
139.95 ea
|
|
SPARE13 |
Spare tire - 13"
|
139.95
|
|
STC |
Spare Tire Carrier
|
49.95
|
|
JACK |
Front Jack
|
99.95
|
|
RRG-55 |
Rubber Guard Stripping 55' roll**
|
99.95
|
|
RRG-110 |
Rubber Guard Stripping 110' roll**
|
189.95
|
|
* Swing Bars Will not fit on trailer if Storage Box is
installed. Swing Bar Option adds additional lead time for Trailer Delivery
** RRG Rubber Guard Stripping is supplied uncut -
requires customer installation.
RRG-55 has enough material for 1 CLP-10 Trailer or 1 CLP-16K Trailer
RRG-110 has enough material for 1 CLP-16 Trailer or 1 CLP-32K Trailer
Delivery is available throughout most of the USA - Contact
us for Shipping & Handling costs. Trailers are delivered fully assembled. |
Application Information
CLP-10 for 10 Canoes
CLP-16 for 16 Canoes
CLP-16K for 16 Kayaks
CLP-32K for 32 Kayaks
| Multiple Canoe Trailer models can be also used to carry
Kayaks as long as the kayak is long enough to be properly supported by the
distance between the crossbars. This also allows mixing and matching
canoes and kayaks on a single trailer. Adding option SB Swing bar allows
reduced cross member spacing for shorter boats. |
Other
Models Available
For 0ne Canoe or Kayak Model SUT-200
For Two Canoes or Four Kayaks Model SUT-250-M
For Four to Eight Canoes UT-1000
For Nine to Sixteen Kayaks UT-1200
|
