Multipurpose Trailer
Trailer for transporting
a combination of multiple Canoes, Kayaks, Sailboats & Gear
Can Carry Up to Eight (8) Kayaks with Available Options
 |
Trailex Ultra-Light Aluminum Trailers
come with a One Year Limited Warranty. Almost 50% lighter
than steel trailers and they Never Rust |
|
FREE SHIPPING
ON TRAILEX SUT SERIES TRAILERS*
*within the 48 USA |
Trailex Model
SUT-500-2BC Trailer
SUT-500-2BC Trailer with Sailboat and Two Canoes
(Sunfish Sailboat and canoes not included)
Base Trailer shown for two Sailboats can be easily modified to carry
different combinations of Boats, Sailboats, Canoes, Kayaks and Gear.
SHIPS
VIA UPS
1. Dual Sailboat Trailer
|
Base Model SUT-500-2BC will carry 2 boats such as Laser, Sunfish, Force 5 Sailboats
or similar boats. Maximum beam of lower boat is 5'-2". Upper
boat can be wider. Pads are adjustable inward or outward and will swivel
flat for carrying boats such as Laser Sailboats upside down. Has a
60" Mast Stand. 500 lb Capacity. Trailer is 12' Long and
7' wide. Can carry 2 small sailboats up to 14'-6" long with a
combined weight of 500 lbs |
2.
Multiple Canoe, Kayak Trailer
|
You may add Option VPI-BB Set of 2 Vinyl inserts for Cross Bars
as a separate option. Protective vinyl padded cross rail
inserts allow carrying two canoes or several Kayaks on bars
without marring. |
| Selecting Option CCB-BB
Adds Two Center Cross Bars to the Box Rack, which gives you a Center
Deck. Using this configuration can Allow you to Carry up to Eight
(8) Kayaks - See Application Notes |
Two Canoes Carried on top bars -Typical
canoes shown on rack for illustrative purpose
Kayaks can be carried upright on top rack
kayaks shown on rack for illustrative purpose
3. Combination Sailboat, Canoes.
Kayaks,
| Add Option EXT-BB to extend tongue
length of Trailer to 15'-5" allowing boats up to 18' to be accommodated. |
 |
 |
Kayaks
Carried on edge on top bar - Typical
shown on SUT-250-M Trailer for illustrative purposes |
MKP option -Typical
shown on SUT-250-M Trailer |
| Add Option MKP with two center Vertical Supports
for tie down support for multiple kayaks. The two vertical risers are
33" high and can be
positioned at any point along the Top Cross Bars. bars. This allows up to
4 Kayaks to be carried on their sides on the top of the trailer.
You may add Option VPI-BB Set of 2 Vinyl Protective inserts for Cross Bars
as a separate option.
|
Trailex SUT-500-2BC Has A Low Profile For Easy Loading Of Top Level
All Aluminum, All Bolted Construction, All
Adjustable
Trailer has epoxy coated leaf springs,
giving it a carrying capacity of up to 500 lbs.
Since this Trailer is made of aluminum, it is maintenance-free in addition to being strong and lightweight.
This trailer is easily assembled
using only simple tools.
|
|
|
|

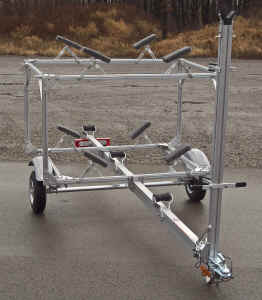

| Trailex SUT-500-2BC Two Boat Trailer
fits Boats up to 60" Wide on the Lower level (62" actual
inside clearance)
|
- |
The Double Deck Design handles Multiple
Boats, Sailboat, Canoes or Kayaks |
|
|
|
|
| Trailex Dual Boat Trailer Comes Standard with the
Front Mast Carrier for Sailboats |
- |
The Double Boat Trailer Bunks Adjust to Any Hull
Contour, or are removable |
|
SUT-500-2BC
Specifications |
Standard Equipment |
|
Capacity:
Weight:
Length:
Width:
Height:
Inner Height:
Inner Width:
Fore/Aft Spacing
Tires:
Coupler:
Electrical: |
500 lbs
190 lbs
12'-0" *
84"
55"
34" Between Decks
62" Inside Width
40" inside 42.5" outside
4:80
X 8" ( 16" High)
1-7/8"
Flat 4 prong
*Optional 15'-5" Length
|
|
|
SUT-500-2BC
|
1,639.00
|
+ FREE
SHIPPING
in 48 USA
|
|
|
ORDER THE COMBO PACKAGE
|
Buy Two
items, and get One FREE
Save $ 50.00 |
(Order the Spare Tire Carrier and Bearing
Buddies with Bra and Receive the Spare Tire for FREE, a 50.00
Value)
Ask for the Combo Package and you will receive:
Spare Tire
Spare Tire Carrier
Bearing Buddies with Bras
What is a Bearing Buddy? View
Here
COMBO Package $89.90
(only when ordered with trailer)
RETAIL VALUE OF PACKAGE IS
$139.90
|
|
Optional Extra Equipment |
|
SPGAL |
Spare Tire Galvanized
|
50.00
|
|
STC |
Spare Tire Carrier
|
49.95
|
|
BBY+B |
Bearing Buddies w/Bra (pair)
|
39.95
|
|
JACK |
Adjustable
Front Parking Jack
|
89.95
|
|
MKP |
Top Vertical 33" Supports for Kayaks
|
119.95
|
|
CCB-BB |
Set of Two Center Cross Bars ( for 3rd Boat Level Transport) **
|
99.95
|
|
VPI-BB |
Set of 2 Vinyl inserts for Cross Bars
|
29.95
|
|
EXT-BB |
Tongue Extension to 15'-5" ***
|
139.95
|
|
30TPAK |
Set of 30 extra T Bolts & Nuts ****
|
29.95
|
|
JACK |
Front Parking Jack
|
89.95
|
| ** CCB-BB Adds
Two Center Cross Bars to the Box Rack, which gives you a Center
Deck. This allows you to slide in extra boats or
Kayaks ( vertical Height allowing) These are adjustable in Height
within the 34" Spacing - An equidistant Position would give you Two
16" High Bays, Plus the Top Bars |
|
*** EXT-BB Tongue Extension to 15'-5"
is a longer section of tongue that replaces one of the pre-packed tongue
sections in the SUT-500-2BC package. So you will have an extra
tongue section left over, which is not returnable for credit.
However, if you ever wish to shorten the trailer, it can be easily adapted
with this extra remaining piece. |
| **** 30TPAK contains 30 each T-Bolts & Locknuts for
attaching your options on the trailer. We do not recommend drilling holes
in the aluminum extrusions. The T-Bolts will slide to any position on any
of the extruded parts to allow you to fasten your own options such as
kayak cradles or other items. |
Application Information
Top Deck
Will carry a Sailboat such as Laser, Sunfish, Force 5 Sailboats
or similar boats.
Will carry up to two canoes up to 18' in length
on top #
Will carry up to four kayaks up to 18' in length
on top #
Longer kayaks - use safety flags
Two Kayaks would be carried upright, side by
side atop.
Canoes & Kayaks can be mixed or matched.
# Add Option EXT-BB to extend tongue
length of Trailer to 15'-5" allowing boats up to 18' to be accommodated.
Standard trailer will handle sailboats to 14'-6"and canoes or kayaks to 16'
without option EXT-BB. Add option VPI-B for Padded top rails.
Lower Deck
Will carry a Sailboat such as Laser, Sunfish, Force 5 Sailboats
or similar boats. Maximum beam of lower boat is 5'-0". Upper
boat can be wider.
Adding Saddles will allow you to carry up to 2 Canoes or Kayaks
(depending on boat widths) in lower bay. adding option VPI-B for Padded
rails for Direct Boat Support.
CCB-BB
Optional Center Deck Cross Bars
Carry Six (6) Kayaks - Two per Bay
Carry Eight (8) Kayaks Two per Lower Bays - Four on Top
with Option MKP
Carry Two (2)Canoes Plus Four (4) Kayaks
Adding Option CCB-BB Adds Two Center Cross Bars
to the Box Rack, which gives you a Center Deck. This allows you to
slide in extra boats or Kayaks ( vertical Height allowing) These are
adjustable in Height within the 34" Spacing - An equidistant Position would
give you Two 16" High Bays, Plus the Top Bar Deck.
add option VPI-B for Padded Rails for Direct Boat
Support.
Add Option MKP with two center Vertical Supports
for tie down support for multiple kayaks. The two vertical risers are
33" high and can be
positioned at any point along the Top Cross Bars. bars. This allows up to
4 Kayaks to be carried on their sides on the top of the trailer.
Assembly
Note: Due to it's many components, this trailer requires more assembly
time and skill levels than our other trailers
| KS-1 Kayak Saddles can be added to
the SUT-500-2BC Trailer for use either on top or lower deck
Click here for details |
|
 |
Click
Here for Frequently Asked Questions
 |
Typical Trailex Trailer Packaged for UPS Shipment |
|
-
Patented T-Bolt Construction
-
Fully Adjustable
-
Heads of bolts slide to any position.
-
Requires only one wrench to tighten
-
Lock nuts on all bolts
-
Strong & lightweight
|
 |
|
