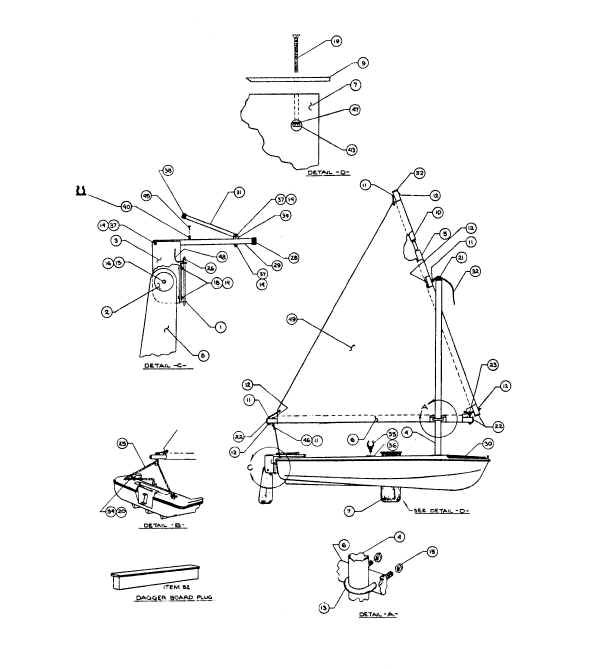

| KEY |
PART |
DESCRIPTION |
| 49 |
40026 |
Main Sail |
| 6 |
40011 |
Boom 132" |
| 5 |
74573 |
Gaff 132" |
| 10 |
74576 |
Gaff Extension |
| 4 |
74570 |
Mast w/Cap 132" x 2-3/8"dia |
| 21 |
31460 |
Mast Cap |
| 22 |
P14500 |
Boom & Spar End Caps (set of 4) |
| 23 |
P31540 |
Boom & Spar Jointed Eyebolt Assembly |
|
P21000 |
Boom Pulley Assembly |
|
P12700 |
Eyebolt assembly (set of 2) |
| 13 |
P74580 |
Boom Guide Assembly |
|
15000 |
#12 line 3/8" |
|
16800 |
#4 line 1/4" |
|
P11610 |
Daggerboard Assembly |
| 52 |
23400 |
Daggerboard Plug |
| 7 |
11700 |
Daggerboard Top Plate |
|
21200 |
Hatch Cover (left or right) |
| 8 |
11620 |
Rudder Blade |
| 3 |
11400 |
Rudder Frame |
|
P10300 |
Rudder Pivot Assembly |
|
P20000 |
Rudder Transom Plate Assembly |
|
P10400 |
Rudder Transom Pivot Assembly |
|
P15700 |
Complete Tiller Handle Assembly |
| 37 |
P17100 |
Tiller Pivot |
|
P15100 |
Rudder Hinge Pin Assembly |
|
P29400 |
Sterns Bullseye Fairlead Assembly |
| 54 |
P40122 |
Sterns Large Clam Cleat Assembly |
| 35 |
30910 |
Oarlock Horns ( each) |
| 36 |
30900 |
Oarlock Socket Assembly |
|
P14300 |
Mast Ring assembly |
|
P12500 |
Boweye (set of 2) |
|
P40130 |
Rudder & Tiller Assembly |
|
P89180 |
Sail Assembly Complete with Sail |
