 Single Canoe Trailer
Single Kayak Trailer

also for small boats, dories, and skiffs up to 200 lbs

Trailex Logo

Trailex Ultra-Light Aluminum Trailers come with  a One Year Limited Warranty.  Almost 50% lighter than steel trailers and they Never Rust



FREE SHIPPING ON TRAILEX SUT SERIES TRAILERS*
*within the 48 USA

Trailex Model SUT-220-S Trailer

Latest Model Series



Trailex SUT-220-S Trailer - SUT-200-S

The SUT-220-S is so light, it is often used also as a launching dolly

All Aluminum, All Bolted Construction, All Adjustable


SUT-220-S Trailer  is 1799.00 + FREE Shipping (48 USA)
Standard Leaf Assembly & Standard Wheels


View All Trailer Prices
  <CLICK HERE>

Scroll Down the Page  for Details , Available Options Pricing  and Action Videos

















Watch a Video on the SUT-220-S Features










Canoe on Car Canoe on SUT-200-S Trailer

Go from This

To This





Model SUT-220-S will transport a single Canoe or Kayak.  It  has a tuned  suspension to virtually eliminate "Road Bounce" on Canoes, Kayaks, and other small boats. This trailer can be shipped via UPS, and is easily assembled.  Since the SUT-220-S Trailer is made of aluminum, it is maintenance-free in addition to being strong and lightweight. Another advantage is that the SUT-220 carries your Canoe or Kayak upright, allowing you to store gear in the boat and since the canoe or kayak is positioned for launching, you may never have to lift your boat again.

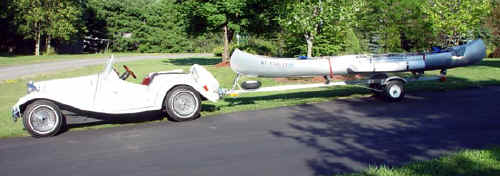

Car with Trailex SUT-200 & Grumman Canoe
Even Small cars can tow the lightweight SUT-220-S Trailer
(car & 17' Grumman canoe not included)





Trailex SUT-200 Trailer With Kayak
 Trailex Model SUT-220-S with optional spare tire and carrier
(
 not included -Old Town Loon Kayak shown on trailer or trailer stand)

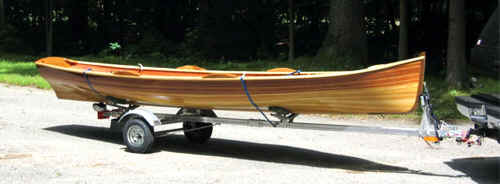

Trailex SUT-200-S with Wood Strip Canoe
SUT-220-S Trailer Provides a Light Ride for Valuable Boats
(Cosine Wherry  not included)






How Light is the SUT-220-S?
(Motorcycle and Alumacraft canoe not included)







View All Trailer Prices
  <CLICK HERE>












Trailex SUT-220-S Has Cradles That Swivel To Accommodate A Wide Variety of Boats

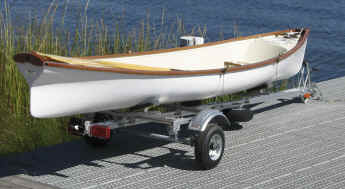

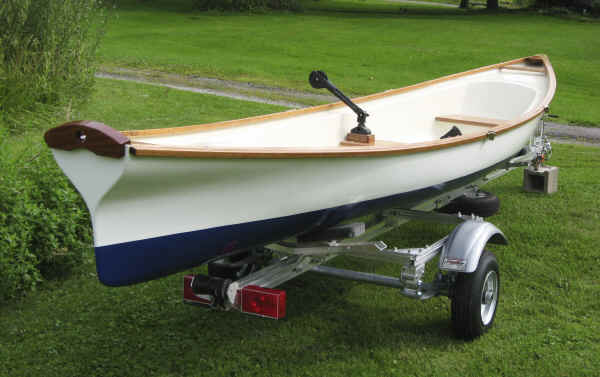

From Flat Bottomed Canoes To Dories Like The MiddlePath Skua 16'  Rowing Cruiser







Trailex SUT-200-S Trailer with Sportspal Canoe - Launching by Hand Trailex SUT-200-S Trailer with Sportspal Canoe - Launching by Car
Use As A  Dolly
(
Sportspal Canoe Not Included)
  Use As  A Trailer
(
Sportspal Canoe Not Included)





Specifications

     Standard Equipment

Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical:

220 lbs
125 lbs
15'-2" feet
52 "
16" High
1-7/8"
Flat 4 prong
  • Submersible Taillights

  • Safety Chain

  • Padded Cradles on Adjustable Brackets

  • Adjustable Bow Stop

  • High Impact Plastic Fenders

  • Lift Handle with Vinyl Caps

  • High Speed Demountable Galvanized Wheels & Tires

  • Adjustable Undercarriage

  • Rear loading Roller

  • Web Strap Clips (4)





Wheel Size Options
Two wheel and Tire Sizes are available





Standard 8.00 X 4.80
Actual Height is 16"

Large   is 12.00 X 4.80
 Actual Height is 20"









Optional Extra Equipment


SUT-12 12"  Wheel Upgrade (Large 12.00 X 4.80)

198.00

SPGAL Spare Tire  (Standard 8.00 X 4.80)   69.00
SPGAL-12 Spare Tire  (Large 12.00 X 4.80)

  99.00

STC Spare Tire Carrier   59.00
WNC Winch with Strap & Hook 159.00







Additional Options


200-MPK Dual  Kayak Conversion Kit (Two Kayaks) 219.00
RB-KIT  Kit includes Set of Two   48" X 6"  Rear Bunks  and Hardware to Replace  Rear Cradle.* 259.00

  NOTE:  Rear Cradle must be removed when installing the RB-KIT.
 The trailer is designed only for a two point support system.



  Bearing Protection System
  Included on Every Trailer

Sure Lube low pressure bearing lubrication system.  Protects bearings and prevents any seal damage.
Easy to use. A Zerk Fitting is located under the axle's end cap. Removing the end cap allows you to use a
small grease gun to lubricate the bearings.
The new grease pushes the old grease out.






Trailex Trailers Are Rated For All US Highway Speeds.
This Trailex Canoe Trailer  Shown Above Has Traveled 16,000 Miles in one year.





RB-KIT   Optional Rear Support Bunks
Bunks can be Adjusted in Height and Angle, or Spaced Close or Wide



Support Bunks can be Flat

  Angle Bunks to fit Hull Contour


For illustrative purposes :similar Trailex trailer shown  set up with  front cradle and rear bunks

Trailer comes standard with a Front and Rear Cradle.  This option allows you to remove the Rear Cradle and install Dual longitudinal bunks.  RB-KIT  is a Set of Two   48" X 6"  Bunks.   NOTE:  Rear Cradle must be removed when installing this kit.  The trailer is designed only for a two point support system.







Trailex SUT-200 with kayak
The Trailex SUT-220-S Trailer Provides A Soft Ride for  Even Small Kayaks
 not included -Old Town Loon Kayak shown on trailer





Cradle adjusted for kayak Cradles on SUT-220-S will allow bunks to be adjusted inward to accommodate narrow boat hulls, such as kayaks.





Trailex Trailer Has Fully Adjustable Cradles     Trailex Trailer Has Fully Adjustable Cradles     Trailex Trailer Has Fully Adjustable Cradles
Semi Vee Hulls   Adjusts to any Hull   Swivels Flat

Trailer Cradles Adjust  to any Point on the Tongue - Bunks Swivel to  Hulls Contour





Application Information

The Trailex  Model SUT-220-S will carry up to a 17' long  Canoe,  Kayak, Skiff  or Dory*

* most states allow up to a  4' overhang before requiring flags or reflectors

For boats Longer than 17' see the Model SUT-350-S Trailer - Click Here

For greater capacity of up to 350lbs
 see the  Model SUT-350-S Trailer - Click Here



Click Here for Frequently Asked Questions

Trailex Trailer Packaged for UPS Shipment

Typical Trailex Trailer Packaged for FedEx Shipment





Trailex T-bolt

Trailex T-Bolt with nut

  • Patented T-Bolt Construction

  • Fully Adjustable

  • Heads of bolts slide to any position.

  • Requires only one wrench to tighten

  • Lock nuts on all bolts

  • Strong & lightweight

Trailex Extrusion & T-Bolt









Trailex SUT-250M-2 Trailer Video












SUT-220-S
Assembly Instructions
