Trailer Options
Bearing
Buddies
 |

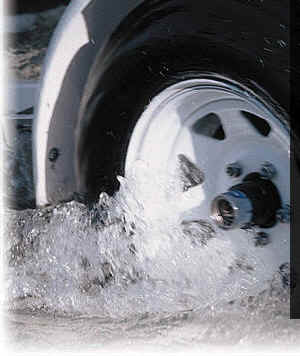

PROTECT WHEEL BEARINGS
Bearing Buddies replace the the end hub on the
axle. All trailers should have their bearings lubricated
yearly. Bearing Buddies eliminate the need to remove the wheel
housing to do this. A standard grease fitting allows easy
lubrication without pulling the wheels. An internal diaphragm keeps
the bearings lubricated under pressure, which keeps water and dirt
out. The Bearing Buddy Bra prevents any excess grease from flying
off the wheel and getting on your boat. |
 |
|
 |
| Bearing Buddy |
|
Bearing Buddy Bra |
MAST
CARRIERS
 |
|
 |
| Aft Mount Mast Stand |
|
Deck Mount Mast Carrier DMMC4 |
10" Aft Stand |
|
Vee opening is 6" at top, 3" at bottom
2.5" depth, - vinyl covered |
|
|
|

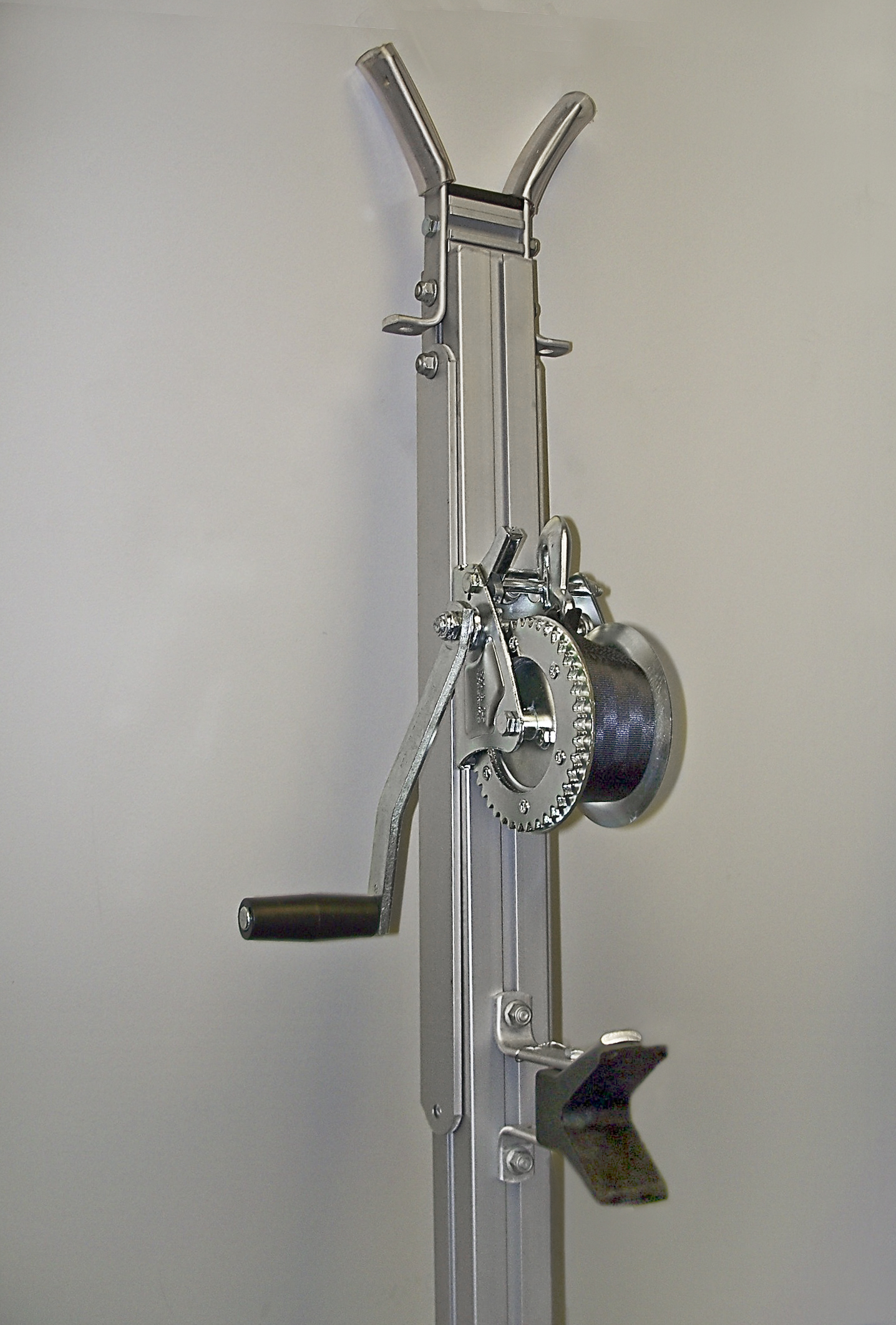

48" Front Mast Stand & Optional Winch |
|
FMS Front mast stands are available in varying
height. These mount to the trailer's front tongue and can be
used with different combinations of rear mast carriers |
Mast Carriers are available in a number of optional arrangements.
Aft Mast Carriers fit into the 3/8" pintle on the rear
of sailboat transoms.
Available in sizes: 10", 16", 33".
48" and 60" high aft stands come with 1/2" pintle pins.
Deck Mount Mast Stands fit on the flat deck surfaces
of sailboats, the four suction cup feet prevent marring or damage to the
boat. You tie the spars down to the boat or trailer and the pressure from
the tied down spars hold the Deck Mount Mast Carrier in place - not the suction
cup feet, which are only to prevent shifting and protect the deck.
Examples:
SMSK Set for Sunfish/ Laser Sailboats or similar
sailboats uses 10" Aft Mast
Stand with front Deck Mount Mast Carrier. Will work with any similar style
sailboat with 3/8" pintles.
Use Two DMMC4 Mast
Carriers for carrying disassembled mast with spars when using a boat cover
Use Two DMMC4 Mast Carriers for Sailboats with flat fore
and aft decks
WINCH
OPTION
|
|
|
|
Winch is Available as an Option
Shown on SUT-450-I Trailer |
|
Winch Strap is 20ft. x 2in. with hook |
Trailex Winch
Requires Winch Post ( part of Winch Package when Ordered)
IMPORTANT NOTE: YOUR BOAT NEEDS A 1" INSIDE DIAMETER BOW-EYE OR RING TO TO FIT THE HOOK.
Specifications:
1,500 lb Capacity
Single Speed
Gear Ratio 4.1:1
Strap 20ft. x 2in. with hook
Hook is Forged Approx 7/8" X 1/2" Nose ( Need 1" inside Diameter Bow Eye or Ring on Boat)
Ratchet Type Two-way
Dimensions - 5-1/2" L x 3-3/4" W x 6" H |
JACK
OPTION
Optional Front Parking Jack shown
Shown on SUT-450-I Trailer
|
