Trailers
For Inflatable Boats
For Zodiac, Mercury Quicksilver, Sea Eagle,
Saturn,
AB, Avon,
Achilles, AMI Advanced Marine, Caribe, Maxxon, Novurania, FSI and Similar Inflatable Boats and RIB
Also for Certain Small Catamarans,
Such as
Hobie 12 and the Hobie Bravo
|
|
Trailex Ultra-Light Aluminum Trailers
come with a One Year Limited Warranty. Almost 50% lighter
than steel trailers and they Never Rust |
Trailex
Trailer for Small Inflatables
Up to 450 lbs and up to 14'-0" Long
|
FREE SHIPPING
ON TRAILEX SUT-450-I TRAILER*
*within the 48 USA |
|
Model SUT-450-I Trailer
|
 |
|
Trailex SUT-450-I Trailer with a Sea Eagle 10.6 Inflatable boat
and a Honda 9,9 Outboard |
 |
|
Trailex Model SUT-450-I Ships via UPS |
| The Trailex Model SUT-450-I Trailer
is Favored by Many Fire Departments, Water Rescue Units and Emergency
Services for Transporting their Inflatable Rescue Boats |
 |
| Rear View of the SUT-450-I - Motor Support can be
adjusted to be under the Outboard |
|
Why Choose the
Trailex Trailex for Inflatable Boats?
These Unique
Features:
- Completely Adjustable
- Large Front Padded Bow Support
- Each Tube is Fully Supported on Both Sides
- The Outboard Engine is Fully Supported on the Transom.
- Lightweight Aluminum - Can be Towed with today's smaller
vehicles
|
All Aluminum, All Bolted Construction, All
Adjustable
| Trailex series of trailers for inflatable
boats have epoxy coated leaf springs and hot dipped galvanized axles. The
SUT-450-I Trailer Ships via UPS. Since Trailex Trailers are made of aluminum, they are
maintenance-free in addition to being strong and lightweight. Trailex's light
weight allows towing with today's smaller vehicles. |
|
SUT-450-I
Specifications |
Standard Equipment |
|
Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical: |
450 lbs
200 lbs
12'-11"
74"
16" High
1-7/8"
Flat 4 prong
|
|
|
|
|
|
|
Winch is Available as an Option
|
|
Optional Front Parking Jack shown
|
 |
|
Trailex SUT-450-I Trailer for Inflatable Boat with Optional Jack and Winch |
 |

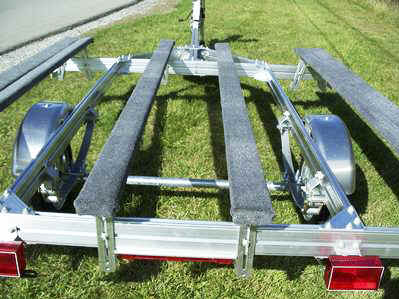

| This Photo shows the Bunk Support Detail on the Trailex SUT-450-I
Inflatable Boat Trailer. The Inflatable Boat's side tubes are
fully supported by the bunks. These bunks are fully adjustable and
allow spacing between the bunks for Inflatable Boat's that have
inflatable tube keels. The Rear Center Transom Bunk provides
Maximum Support for the boat's outboard Motor |
Application Information
Models are available for Numerous
Inflatable Boats
Model SUT-450-I will fit the following Models
(SUT-450-I
ships via UPS)
|
MANUFACTURER |
MODEL |
SIZE |
| |
|
|
| AB |
Mares 3.50 I |
11'-0" x 5'-4" |
| Achilles |
SGX-122 |
12'-2" x 5'-4" |
| AMI |
RKS-380 |
12'-6" x 5'-7" |
| Avon |
Rover R340 |
11'-2" x 5'-3" |
| Caribe |
C-12 |
11'-6" x 5'-7" |
| FSI |
F-YRR 385 |
12'-6" x 5'-7" |
| Maxxon |
CS-390 |
12'-9" x 5'-6" |
| Mercury Quicksilver |
340 |
11'-2" x 5'-0" |
| Mercury Quicksilver |
380 |
12'-6" x 5-'8" |
| Saturn |
SD385 |
12'-6" x 5'-7" |
| Sea Eagle FoldCat |
375fc |
12'-4" x 4'-6" |
| Sea Eagle |
285 |
9'-0" x 4' -0" |
| Sea Eagle |
SE-12.6 |
12'-6" x 5'-7" |
| Zodiac |
ERB 310 |
10'-6" x 5'-3" |
| Zodiac |
G 380 Fire Brigade |
12'-6" x 6'0" |
| Zodiac |
MK1 Touring |
11'-6" x 5'-3" |
| Zodiac |
MK2C Touring |
12-6" x 5'-9" |
| Zodiac |
MK1 Futura |
11'-6' x 5'-4" |
| Zodiac |
MK2C Futura |
12'-6" x 6'-0" |
| Zodiac |
MK1 Futura Fastroller |
11'-6' x 5'-4" |
| Zodiac |
MK2C Futura Fastroller |
12'-6" x 5'-10" |
SUT-450-I will adjust to fit most smaller
models of the above listed boats,
and boats up to a maximum 64" from center of one tube to another.
Example: boat is 72" wide total with 18" diameter tubes -
subtract the width of one tube to determine centerline = 54" which is
within the 64" maximum centerline allowed.
-Small
Catamarans -
Such as the Hobie 12 and the Hobie Bravo will also fit on the
SUT-450-I Trailer
Model SUT-450-I will Also fit the following Larger Models
With the Addition of Option EXT-BB Tongue Extension
(SUT-450-I
ships via UPS)
|
IMPORTANT
NOTE:
Option EXT-BB increases the length of the trailer to 15'-5"
The Maximum Capacity Including Motor Remains at 450 lbs
Outboard Motors Typically should not exceed 35%
of the Hull Weight for proper trailer
balance and tongue weight |
See Model UT-850-M for Boats requiring
Capacity up to 850 lbs.
Model UT-850-M is Heavy Duty and has Larger, Wider Bunks.
CLICK HERE TO SEE UT-850-M TRAILER
|
MANUFACTURER |
MODEL |
SIZE |
| |
|
|
| Achilles |
SG-140 * |
14'-0" x 5'-9" |
| AMI |
RKS-420 * |
13'-9" x 6'-2" |
| Avon |
A400 * |
13'-3" x 6'-3" |
| FSI North America |
FYRR-430 * See
Note # |
14' 0" x 6' 3" |
| Maxxon |
CS-420 * |
13'-9" x 6'-0" |
| Mercury Quicksilver |
430 * See
Note # |
14'-1" x 6'-2" |
| Saturn |
SD-430 * |
14'-0" x 6'-5" |
| Sea Eagle |
SE-14SR * |
14'-0" x 6'-2" |
| Sea Eagle FoldCat |
440fc * |
14'-3" x 5'-11" |
| Zodiac |
ERB 380 * |
12'-9" x 5'-6" |
| Zodiac |
ERB 400 * See
Note # |
13'-5" x 6'-3" |
| Zodiac |
ERB-400 * See
Note # |
13'-2" x 6'-3" |
| Zodiac |
FC420 * See
Note # |
13'-9" x 5'-9" |
| Zodiac |
MK2 Touring * See
Note # |
13'-9" x 5'-9" |
| Zodiac |
MK2 Futura * See
Note # |
13'-9" x 6'-0" |
| Zodiac |
MK2 Futura Sport * See
Note # |
13'-9" x 6'-0" |
| Zodiac |
MK2 Futura Fastroller * See
Note # |
13'-9" x 6'-0" |
| Zodiac |
MK2 Grand Raid * See
Note # |
13'-9" x 5'-9" |
| |
*Must order
Option EXT-BB |
|
Note # Best Fit for these Models is the UT-850-M CLICK
HERE
| SUT-450-I |
1,500.00
|
+ FREE
SHIPPING
in 48 USA
|
|
|
ORDER THE COMBO PACKAGE
|
Buy Two
items, and get One FREE
Save $ 50.00 |
(Order the Spare Tire Carrier
and Bearing Buddies with Bra and Receive the Spare Tire for FREE,
a 50.00 Value)
Ask for the Combo Package and you will receive:
Spare Tire
Spare Tire Carrier
Bearing Buddies with Bras
What is a Bearing Buddy? View
Here
COMBO Package $89.90
(only when ordered with trailer)
RETAIL VALUE OF PACKAGE IS
$139.90 |
.
| ** Option TCBS is used when you want extra center support
because the boat would be transported with gear loaded, or you have a RIB
(rigid inflatable boat) that may require center hull support. All Trailers have
rear transom supports. |
| *** EXT-BB Tongue
Extension to 15'-5" is a longer section of tongue that replaces one
of the pre-packed tongue sections in the SUT-450-I package. So you
will have an extra tongue section left over, which is not returnable for
credit. However, if you ever wish to shorten the trailer, it can
be easily adapted with this extra remaining piece. |
Optionally,
this trailers may be delivered to your location fully assembled, depending on
your area. Please contact us for shipping quotes.
Contact
Us for Specific Model Information
Click
Here for Frequently Asked Questions
|
-
Patented T-Bolt Construction
-
Fully Adjustable
-
Heads of bolts slide to any position.
-
Requires only one wrench to tighten
-
Lock nuts on all bolts
-
Strong & lightweight
|
 |
|
