Multiple Sailboat Trailers
Multi-Carrier Trailers for Sailboats
Two Sailboat Trailer
Three Sailboat Trailer
Four Sailboat Trailer
 |
Trailex Ultra-Light Aluminum Trailers
come with a One Year Limited Warranty. Almost 50% lighter
than steel trailers and they Never Rust |
Trailex Model
SUT-500-2BC Trailer
SUT-500-2BC trailer
SHIPS
VIA UPS

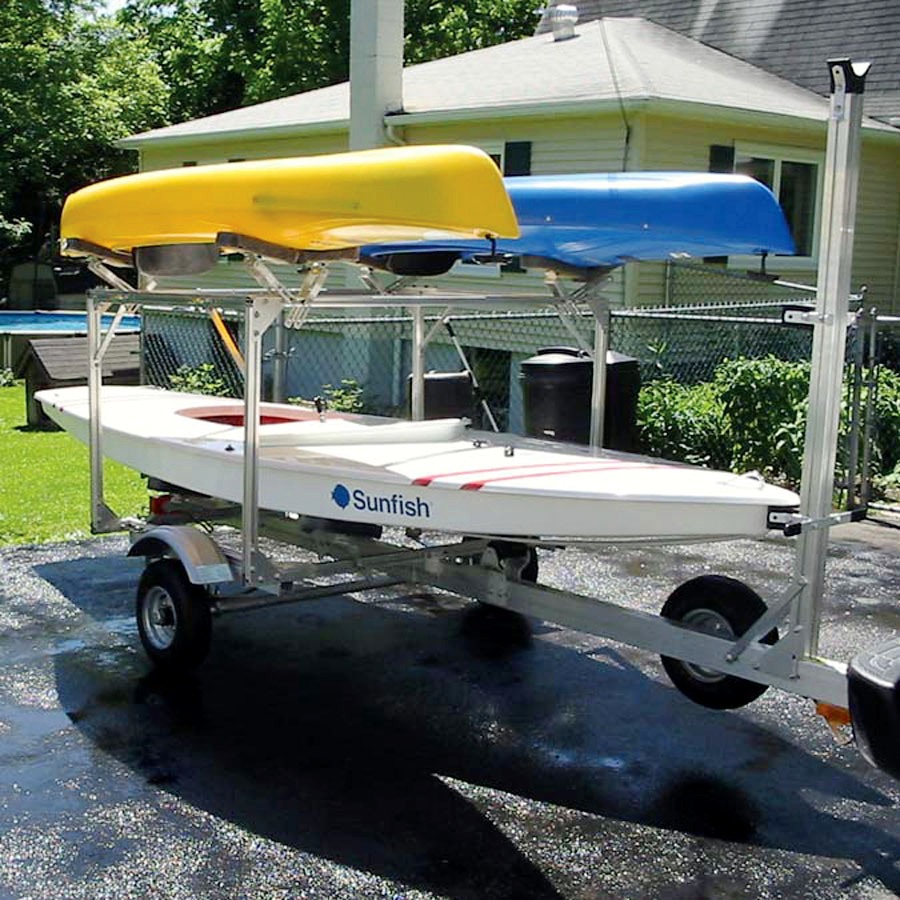

Model SUT-500-2BC will carry 2 boats such as Laser, Sunfish, Force 5 Sailboats
or similar boats. Maximum beam of lower boat is 5'-2". Upper
boat can be wider. Pads are adjustable inward or outward and will swivel
flat for carrying boats such as Laser Sailboats upside down. Has a
60" Mast Stand. 500 lb Capacity. Trailer is 12' Long and
7' wide. Can carry 2 small sailboats up to 14'-6" long with a
combined weight of 500 lbs
Trailex SUT-500-2BC Has A Low Profile For Easy Loading Of Top Level
|
SUT-500-2BC
Specifications |
Standard
Equipment |
|
Two (2) Boat Trailer |
For Sunfish - Laser or Similar
|
|
|
Capacity: |
500 lbs
|
Submersible Taillights
|
|
Weight: |
190 lbs
|
Safety Chain
|
|
Length: |
12'-0" *
|
2 Sets Boat Cradles
|
|
Width: |
84"
|
High Impact Plastic Fenders
|
|
Height: |
55"
|
High Speed Demountable-
|
|
Inner Height: |
34" Between Decks
|
-Galvanized Wheels &
Tires
|
|
Inner Width: |
62" Inside Width
|
Adjustable Undercarriage
|
|
Tires: |
4:80 X 8" ( 16" High)
|
Epoxy Coated Springs
|
|
Coupler: |
1-7/8"
|
|
|
Electrical: |
Flat 4 prong
|
|
|
|
|
|
|
|
*Optional 15'5" Length
|
|
All Aluminum, All Bolted Construction, All
Adjustable
Multi Carrier Trailers have epoxy coated leaf springs,
giving them a carrying capacity of up to the listed load ratings.
Since these Trailers are made of aluminum, they
are
maintenance-free in addition to being strong and lightweight. These
trailers require common carrier or motor freight shipment, and are easily assembled
using only simple tools.
|
Trailex
Model UT-400-3LS |
Trailex
Model UT-400-4LS |
 |
 |
Trailex Model UT-400-3LS and UT-400-4LS will carry 3
or 4 respectively, Laser, Sunfish or similar sailboats. Maximum
beam of lower boat is 4'-8" .Upper boat can be wider. Pads are
adjustable inward or outward and will swivel flat for carrying boats such as
Laser Sailboats upside down. 600 lb Capacity. Trailers are
15'-10" Long and 70" Wide. Suspension and tires are
similar to photo of TX-400-2BC trailer shown above. Vinyl inserts and end caps
protect side mounted boats.

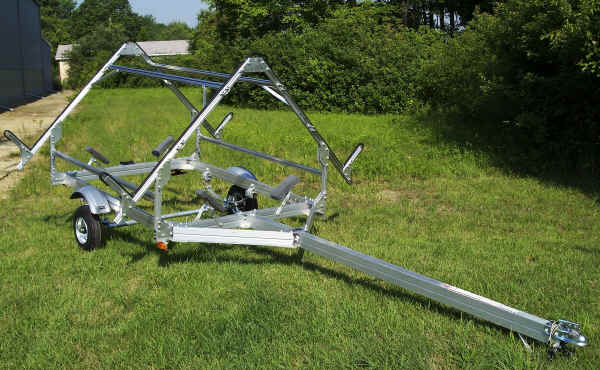

Trailex
Model UT-400-3LS

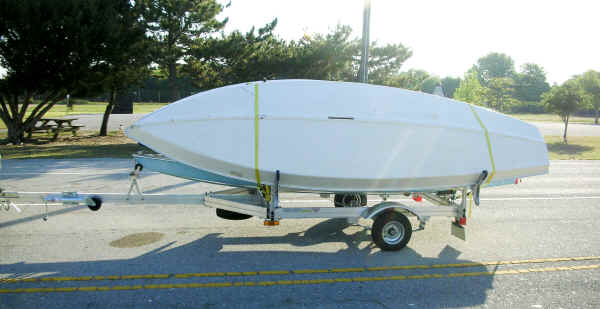

Trailex UT-400-3LS Trailer Carries Three (3) Laser or Sunfish Style
Boats
|
UT-400-3LS
Specifications |
Standard
Equipment |
|
Three (3) Boat Trailer |
For Sunfish - Laser or Similar
|
|
|
Capacity: |
600 lbs
|
Submersible Taillights
|
|
Weight: |
175 lbs
|
Safety Chain
|
|
Length: |
15'-10"
|
High Impact Plastic Fenders
|
|
Width: |
70"
|
High Speed Demountable-
|
|
Height: |
60"
|
-Galvanized Wheels &
Tires
|
|
Fore Aft Spacing |
72" Between Bunks
|
Adjustable Undercarriage
|
|
Side Load Width: |
60" Angled Bunk Width
|
Epoxy Coated Springs
|
|
Inner Width: |
60" Inside Width
|
1 Set Padded Bunks Lower
|
|
Tires: |
4:80 X 8" ( 16" High)
|
Dual P added Side Bunks
|
|
Coupler: |
2"
|
|
|
Electrical: |
Flat 4 prong
|
|
Trailex
Model UT-400-4LS

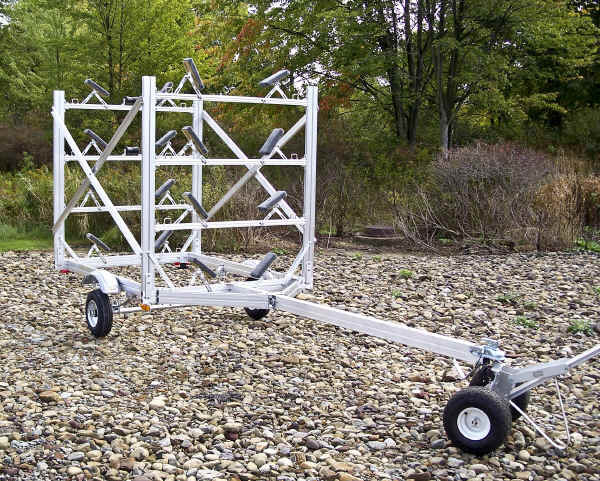

UT-400-4LS Trailer
Carries Four (4) Laser or Sunfish Style
Boats
(shown with SUT-HDKD Trailer Mover
Dolly, not included)
|
UT-400-4LS
Specifications |
Standard
Equipment |
|
Four (4) Boat Trailer |
For Sunfish - Laser or Similar
|
|
|
Capacity: |
600 lbs
|
Submersible Taillights
|
|
Weight: |
240 lbs
|
Safety Chain
|
|
Length: |
15'-1"
|
High Impact Plastic Fenders
|
|
Width: |
79"
|
High Speed Demountable-
|
|
Height: |
86"
|
-Galvanized Wheels &
Tires
|
|
Fore Aft Spacing |
75" Between Bunks
|
Adjustable Undercarriage
|
|
Height Spacing: |
18" Cross Bar Spacing
|
Epoxy Coated Springs
|
|
Inner Width: |
66" Inside Width
|
4 Sets Padded Bunks
|
|
Tires: |
4:80 X 8" ( 16" High)
|
|
|
Coupler: |
2"
|
|
|
Electrical: |
Flat 4 prong
|
|
PRICES
|
SUT-500-2BC
|
1,639.00
|
+ FREE SHIPPNG
in 48 USA
|
|
UT-400-3LS
|
1,899.00
|
+ shipping & handling
|
|
UT-400-4LS
|
2,149.00
|
+ shipping & handling
|
|
Optional Extra Equipment |
|
SPAPT |
Spare Tire |
49.95 |
|
STC |
Spare Tire Carrier |
49.95 |
|
BBY+B |
Bearing Buddies w/Bra (pair)
|
31.00 |
|
JACK |
Adjustable Front Parking Jack |
89.95 |
Application Information
Model SUT-500-2BC will carry Two Laser, Sunfish, Force 5 or similar
sailboats up to 5'-2" wide
Model UT-400-3LS will carry Three Laser, Sunfish,
Force 5 or similar sailboats up to 4'-8" wide.
Model UT-400-4LS will carry Four Laser, Sunfish, Force 5 or
similar sailboats up to 4'-8" wide.
Assembly
Note: Due to their many components, these trailers require more assembly
time and skill levels than our other trailers
 |
These trailers can be shipped via common carrier i.e.
motor freight. The frames are assembled and then wrapped.
Running gear, superstructure, and lighting are boxed. |
|
-
Patented T-Bolt Construction
-
Fully Adjustable
-
Heads of bolts slide to any position.
-
Requires only one wrench to tighten
-
Lock nuts on all bolts
-
Strong & lightweight
|
 |
Click
Here for Frequently Asked Questions
|
